SKU: 1097

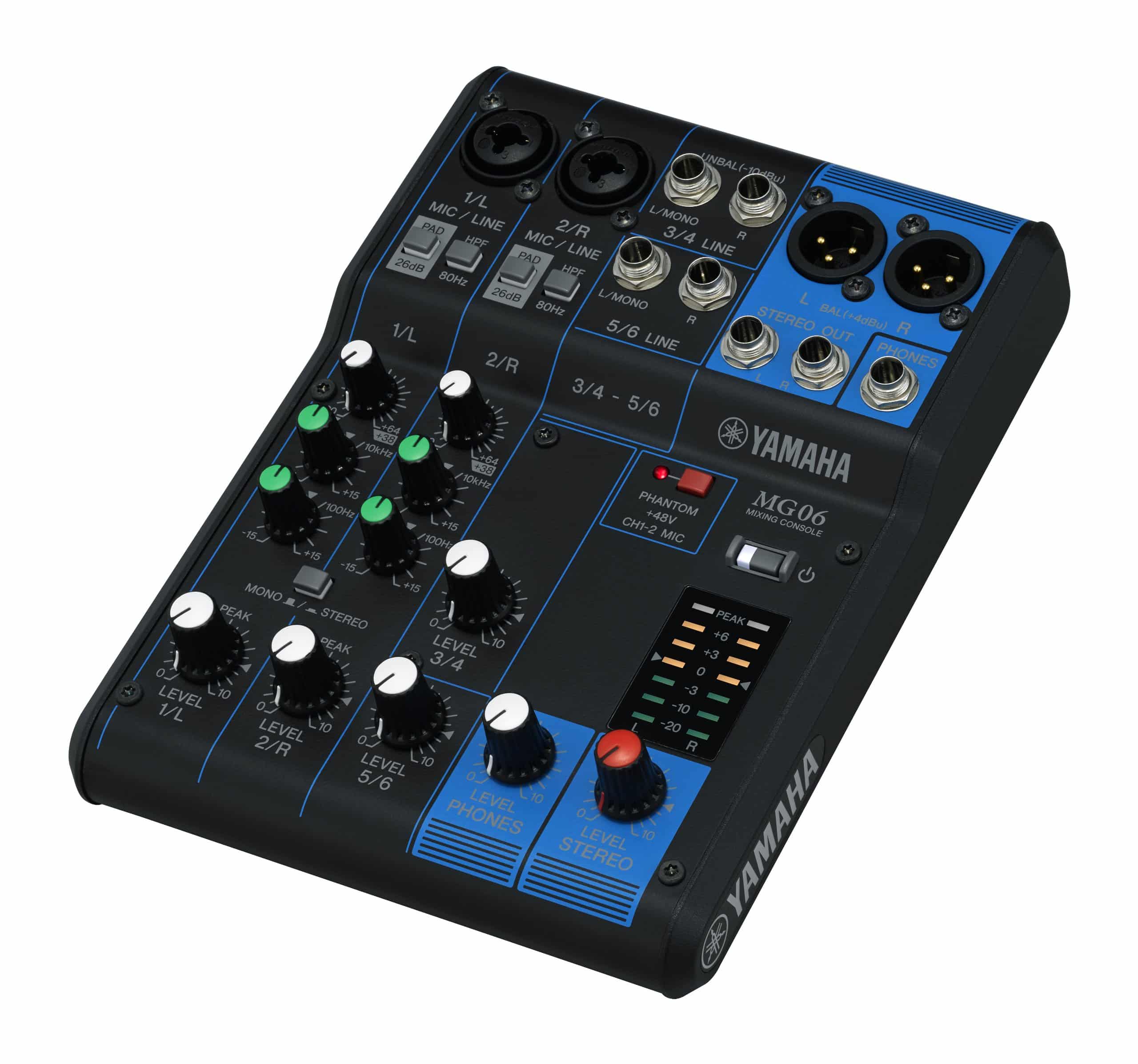

Mixer, Yamaha MG06, compact 6-channel analog console
The Yamaha MG06 is a compact, 6-channel analog mixing console designed for small live performances, recording, and broadcasting. It features two combination XLR/TRS inputs with Yamaha’s studio-grade D-PRE preamps and four 1/4″ line-level inputs.
Core Features
Inputs & Preamp: 2 mono (mic/line) channels and 2 stereo line channels. The preamps feature inverted Darlington circuits for transparent, high-quality audio.
Channel Controls: Includes 2-band EQ (High/Low) and high-pass filters (80Hz) on the mono channels.
Mic Functions: Switchable +48V phantom power for condenser microphones and a 26dB pad switch to prevent clipping from loud sound sources (like drum mics or guitar amps).
Outputs: Stereo XLR and balanced 1/4″ outputs, plus a dedicated 1/4″ headphone jack for monitoring.
Build: Solid, impact-resistant powder-coated metal chassis for maximum durability.
Specifications
Channels: 6 max (2 mic/line, 2 stereo line)
Phantom Power: Yes
Dimensions: 5.9″ x 2.4″ x 7.9″
Weight: 1.98 lbs (0.9 kg)
USB Interface: None (Analog only)
$20.00
Rental period
1 / 1 available
